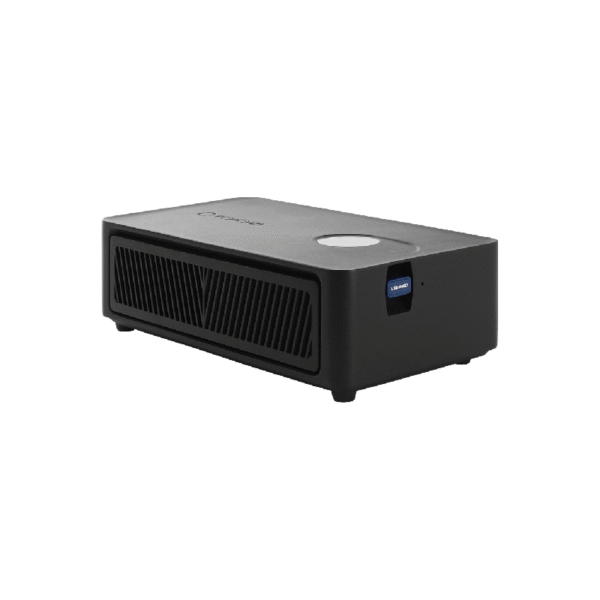

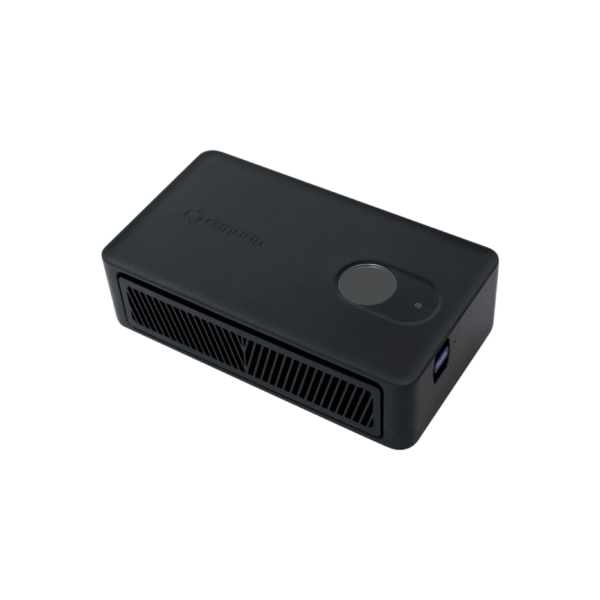

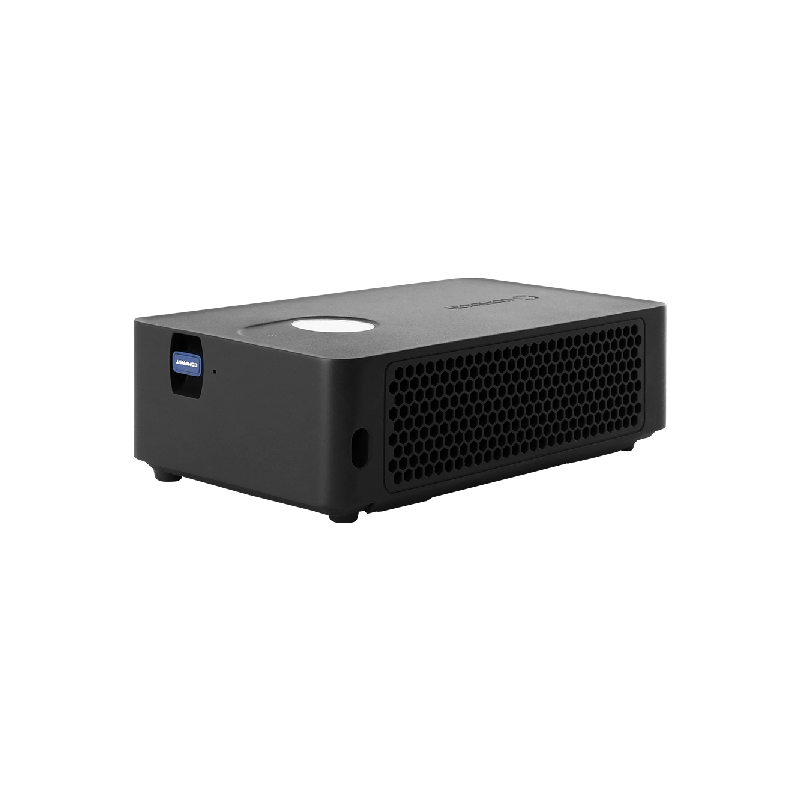

Canaan Avalon Nano 3S 6T BTC Bitcoin Miner

Cryptocurrency:  BTC(Bitcoin)

Hashrate: 6TH/s

Power Wastage: 140W

Unit Power: 23.3W/T



Avalon Nano 3S is the latest Bitcoin Miner, using SHA256 algorithm, can support mining Bitcoin, the maximum Hashrate reached 6TH/s, power consumption of 140W, compared to the Avalon Nano3, the same 140 power consumption has a better arithmetic power of 6TH/s

Manufacturer	Canaan
Model	Avalon Nano 3S
Algorithm	BTC
Cryptocurrency	SHA256
Hashrate	6TH/s
Power wastage	140W
Unit Power	23.3W/T
Miner Size (w/o package)	205*115*58.5mm
Miner Size (with package)	241*150*125mm
Net Weight	0.86KG
Gross Weight	1.33KG
Power AC Input	28 V
Operation Temp	-5~30°C
Noise	35 DB
Operation Humidity(non-condensing)	10~90% RH



1. Enhanced Computing Power: Equipped with a new generation of computing chips, delivering up to 50% more computing power with the same power consumption.
2. High Cost-Effectiveness: Provides better value for money for users.

Appearance and Structure Design

3. Circular LED Screen: Offers superior display effects.
4. Dustproof Design: Extends the lifespan of the device.
5. USB Interface: Supports Wi-Fi modules and LAN connectivity (recommended to use the official Wi-Fi module).
6. Integrated Safety Air Outlet Design: Features a minimalist appearance and efficient heat dissipation.

Power Adapter

7. High-Quality Adapter: Comes with a stable GaN 140W adapter supporting the PD 3.1 protocol.
8. Flexible Options: Available in both US and EU standard plugs to meet regional needs.

Security and Quality

9. Information Security: Uses advanced encryption algorithms and handshake mechanisms to reduce the risk of Trojan attacks, ensuring the device’s safety.
10. Quality Assurance: Includes a 360-day limited warranty covering non-human-caused failures and damages.

Ease of Use

11. Quick Setup: Easily configured through the Avalon Family App, supports pre-configured connection to the F2Pool mining pool, and comes with an F2Pool service card.
12. ASIC Miner Remote Monitoring: Monitor and manage your ASIC miner’s performance remotely through the Avalon Family App, ensuring efficient and uninterrupted mining operations.
13. Plug-and-Play: Seamlessly connects to networks via USB without complex configurations.

Environmental Commitment

13. Eco-Friendly: Uses recyclable and renewable materials for packaging, emphasizing environmental responsibility.
14. Home-Friendly Design: Specifically designed for home use with low noise levels (30-40 dB) and a wide operating temperature range (-5~30℃).

Specifications

15. Powerful Performance: 6 TH/s computing power, featuring 12 chips with 4-nanometer process technology.
16. Compact and Lightweight: Weighs only 0.86 kg with a compact size (205mm x 115mm x 58.5mm).
